- Input Voltage: Redundant DC48-58V input
- Operating Temperature: -40°C ~ +75°C
- Shell: IP40 Protection, Fanless Design
- Test Report: RoHS, FCC, CE
- Anti-Static: 8KV-15KV
- MTBF: 100,000 Hours

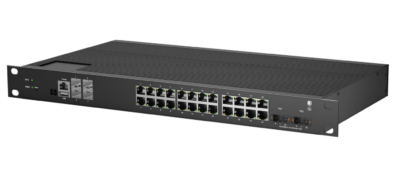

LN-2348-I-R-SERIES
The industrial ethernet switches are designed for use in harsh environments and allow you to build cost-effective, reliable and secure industrial networks. Whether you require an unmanaged switch for a point-to-point link, or a managed switch for redundancy – our extensive range of industrial Ethernet switches are the ideal solution, regardless of the environment.
Switch Options
| Image | SKU | 1G RJ45 Downlinks | 10G SFP+ Uplinks | PoE+ Budget/W | Datasheet | Quote |
|---|---|---|---|---|---|---|
 |
LN-2348G-4XGF-I-R | 48 | 4 | 400 | ||
|
|
LN-2348GP-4XGF-I-R | 48 | 4 | - |
Quality of Service
| ACL mapping to priority queue | Traffic shaping |
|---|---|
| WRR support | QoS based on classification |
| Strict priority support | 802.1p support |
| DSCP prioritization |
Security
| ACLs | Downloadable ACL |
|---|---|
| DHCP snooping | Dynamic ACL |
| 802.1x authentication | Secure copy (SCP) |
| MAC authentication | DoS protection |
| Radius/Tacacs/Tacacs+ | Local username/password |
| AAA, SSH | Protected ports |
| ARP inspection (DAI & SAI) | RA guard |
Management
| loud management | RMON |
|---|---|
| Industrial standard CLI | Telnet support |
| Local management | SNTP |
| Stacking | Syslog server |
| SNMP v1/v2c/v3 | IPv6 management |
| SNMP traps | Storage & file management |
| TFTP support | Firmware auto-install support |
| SPAN/RSPAN | Password management |
| sFlow |
